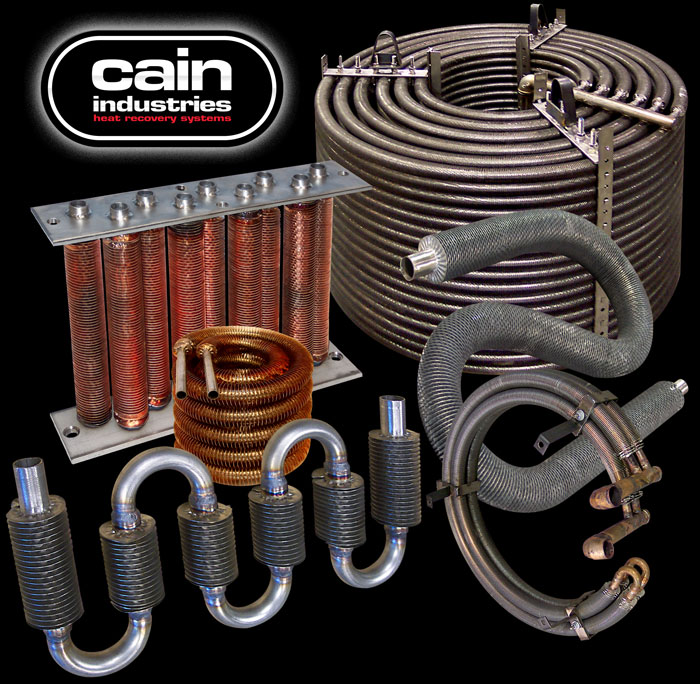

Cain Industries offers an extensive selection of boiler finned tubing. Its primary function is to maximize the amount of heating surface that can be utilized in a given volume of installation space. As an example when you compare the amount of heating surface within a lineal foot of a 1" OD bare tube to a lineal foot of a 1" OD tube with 6 fins per inch and .5" fin height, you increase the amount of heating surface by a factor of 12. This equates to 12 times more heating surface with a finned tube than a bare tube, per lineal foot. Or it could also be viewed as a finned tube one foot long, which provides the same amount of heating surface as a 12 foot long bare tube.
There are many different types and methods of fin to tube attachment. Cain Industries has accumulated years of experience in the field of waste heat recovery from our industrial combustion exhaust product lines. These product lines include boiler economizers, waste heat recovery silencers and packaged waste heat boilers... Which all utilize finned tubing under rigorous thermal load conditions.
We have determined which specific types of finned tubing can best withstand the extremes of temperature and environment in our customers' installations. As a result we have developed proprietary technology to produce a range of industrial grade products that meet the industry's stringent demands.
When you have a finned tube requirement, we will offer the best recommendation to suit your need at competitive pricing. We'll quote your specification or create a specification based on your exact needs. We can offer basic finned tubing in straight lengths or subassemblies, or a complete heat exchanger.
ASME Quality Control
ASME stamping is available to meet Sec.VIII Div.l ("U" symbol) and Sec.l ("S" symbol) and National Board Stamp.
Cain Industries will provide prototype finned tubing or assemblies, when required, at a nominal cost.
- Stainless steel tube to aluminum fin with the AL-FUSE™ bonding method of fin tube attachment for temperatures to 750°F.
- Stainless steel tube to stainless steel fin with Nickel Brazed/welded method of fin tube attachment for temperatures to 1,750°F.*
- Stainless steel tube to carbon steel fin with Nickel Brazed/welded method of fin tube attachment for temperatures to 1,650°F.*
- Carbon steel tube to carbon steel fin with Nickel Brazed/welded method of fin tube attachment for temperatures to 1,650°F.*
- Copper or cupro nickel tube to copper fin with Nickel Brazed/welded method of fin tube attachment for temperatures to 1,750°F.*

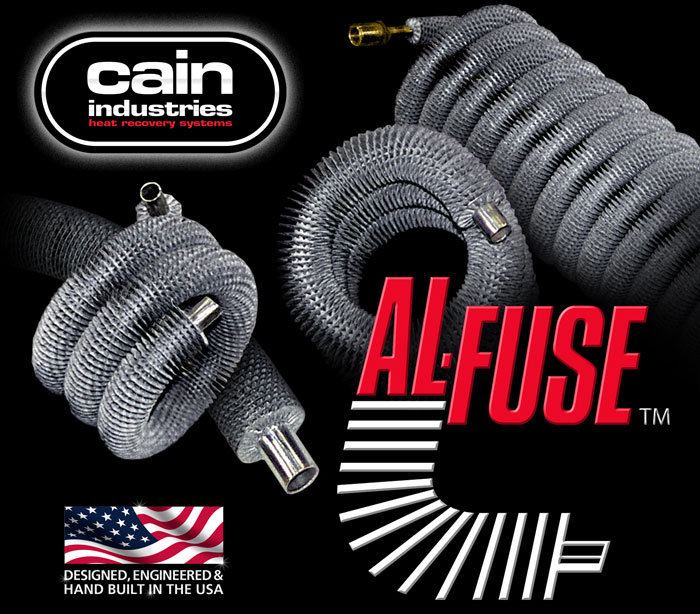

AL-FUSE™ Spiral Finned Tubing
The AL-FUSE™ process bonds aluminum fin to stainless steel or aluminum tube and is available in a variety of tube sizes, fin spacings, heights, and tube and fin metal combinations.
The Exclusive AL-FUSE™ Bonding Process
Cain Industries' proprietary metal bonding process called AL-FUSE™ produces a permanent metallurgical bond between the dissimilar metals. One very popular type is aluminum fin bonded to stainless steel tube which assures the original performance at the rated capacity of the spiral finned surface during its lifetime.
Cain's proprietary process incorporates a liquid composition which, when subjected to heat, creates a reaction causing alloying of the metals. The result is an integral one-piece unit possessing maximum heat transfer capability and a protective coating offering high resistance to corrosion.
AL-FUSE™ Can Easily Bend and Twist In and Around Confined Spaces
The finned tubing can be twisted and bent into numerous shapes. By forming a tube length into a U-shape, circle, square, or serpentine configuration, limited space is utilized rather than being wasted. As fins are metallurgically bonded to tubes, expansion and contraction does not develop points of stress along the tube surface that can cause metal fatigue. And, unlike the "pinging" sounds created by the movement of fins which are mechanically bonded to tubes, expansion and contraction of the AL-FUSE™ tube is noiseless. Vibration and thermal shock will not cause separation of the fin and tube.
- Highest Heat-Transfer Efficiency
- Excellent Structural Formability
- Rugged and Lightweight
- Leakproof Reliability
- High Corrosion Resistance
Typical Cooling Applications which Illustrate the Versatility of AL-FUSE™ Finned Tubing are:
With spiral finned tube across the face of the radiator, the engine powered fan cools the engine's jacket water as well as the circulated hot oil.
Custom Designed Radiator
Straight lengths of spiral finned tubing fitted into top and bottom tanks provide cooling for a closed system. Additional cooling is possible with a power-driven fan.
Two short lengths of spiral finned tubing provide the surface required to cool compressor air.
Hydraulic Power Supply
Life of power source is lengthened by removing excess heat from hydraulic fluid used with machine tools. Hot fluid is cooled as it circulates through spiral finned tube placed in the path of the engine's combustion air supply.
